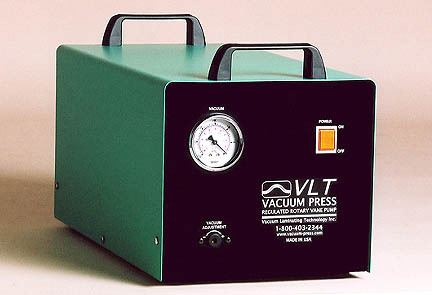

The VLT 50 & the VLT 100 are regulated rotary vane vacuum pumps. They provide the most efficient way for generating vacuum. The heart of the system is a heavy-duty, cast iron, oil-less rotary vane vacuum pump. It is powered either by a 1/4 HP or 3/4 HP, thermally protected motor with sealed bearings. The pump's operation is intermittent, and the vacuum sensor is adjustable and protected by internal power relays.

Once the preset vacuum is achieved an internal vacuum sensor turns the pump off. It cycles occasionally to maintain constant vacuum level. The vacuum sensor can be easily adjusted, allowing the operator to determine the optimum pressure. This feature will allow you to increase or decrease the pressure according to your needs. For more precise control or use with vacuum clamping add our FP1 foot switch.

We use large, easy-to-read vacuum gauges, large diameter hoses, brass fittings and high-end precision check valves so the flow of air through the pumps internal plumbing is not restricted in any way. Special coatings on the inside of the pump's vacuum chamber protect it against corrosion. This gives our pumps the advantage of speed and corrosion resistance.

The VLT 50 with 4.6 CFM evacuation rate is for general use with all standard size bags. Model VLT 100 with 10 CFM evacuation rate is designed for use with larger or multiple bags and in production applications where very fast evacuation of air is required.

Our pumps have a record of flawless performance and they meet the highest industrial standards
(UL, CAS, CE, TUV). Tested and improved over and over again since 1989, rotary vane pumps have a proven history of reliability and performance. The simple construction as compared to rocking piston pumps offer 75% less wearable parts, and are easier to service. See warranty on contact page.

Advantages:

• Quiet, fast and efficient evacuation of the air
• Meets the highest industrial standards: CE, UL, CAS, TUV
• Internal relay protect electrical circuit and switches
• Self regulated operation
• Adjustable vacuum level
• Maintenance free oilless pump
• Large diameter internal plumbing
• Corrosion resistant
• Compact and portable
• Thermally protected motor
• Independent, self-contained system

Specifications

 Model

 *Evacuation  Rate

 Maximum  Vacuum

 Motor  (Thermally  Protected)

 Voltage

 Weight  (lbs)

 Price

 VLT 50

 4.6 CFM

 27.5 in.Hg

 1/4 HP

 115-230V 60/50Hz

 45

 850.00

 VLT 100

 10 CFM

 27.5 in.Hg

 3/4 HP

 115-230V 60/50Hz

 59





Constant Running Pumps

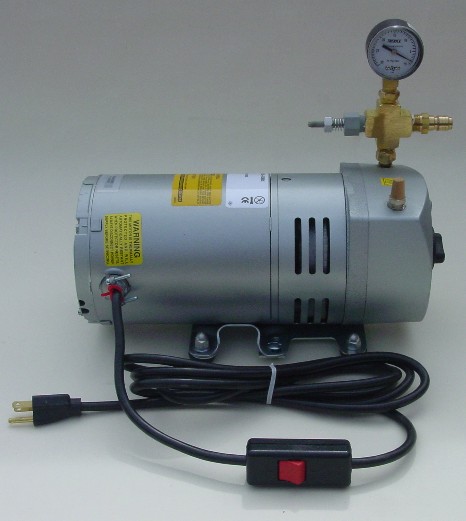

The VP 5 is a rotary vane pump with an adjustable vacuum control. A alternative to the manual venturi for those whom do not have access to an air compressor or desire less operator monitoring of the unit.

The pumps balanced motor is quiet and smooth running, yet built for industrial use as well. The pump develops adequate vacuum for many pressing applications.

The unit comes supplied with power cord, internal filter and vacuum gauge. Simply plug in the pump to begin evacuation and leave running for the duration of the needed pressing cycle. The VP 5 is a heavy-duty, cast iron, oil-less rotary vane vacuum pump with thermally protected motor and sealed bearings. See warranty on contact page.

Specifications

 Model

 *Evacuation  Rate

 Maximum  Vacuum

 Motor  (Thermally  Protected)

 Voltage

 Noise (db)

 Weight  (lbs)

 Price

 VP 5

 4.6 CFM

 26 in. Hg

 1/4 HP

 115-230V/ 60/50Hz

 70

 30

 650.00

















Prices do not include shipping or taxes(California residents only).

*The evacuation numbers are actual open rates. We do not round up specification numbers in order to give an impression of a higher than actual rate.
